Build a NAS for Affordable Storage – The Complete Guide

The Build

The project was quite easy to build. The issues came about trying to keep everything neat and tidy in such a small case. Also, if I wanted to populate all available drive bays in the Node 304 with 3.5″ 2TB drives, I had to figure something out for the OS drive. Luckily, it worked out that you could install the 2.5″ SSD on the outside of one of the drive cages without any issue.

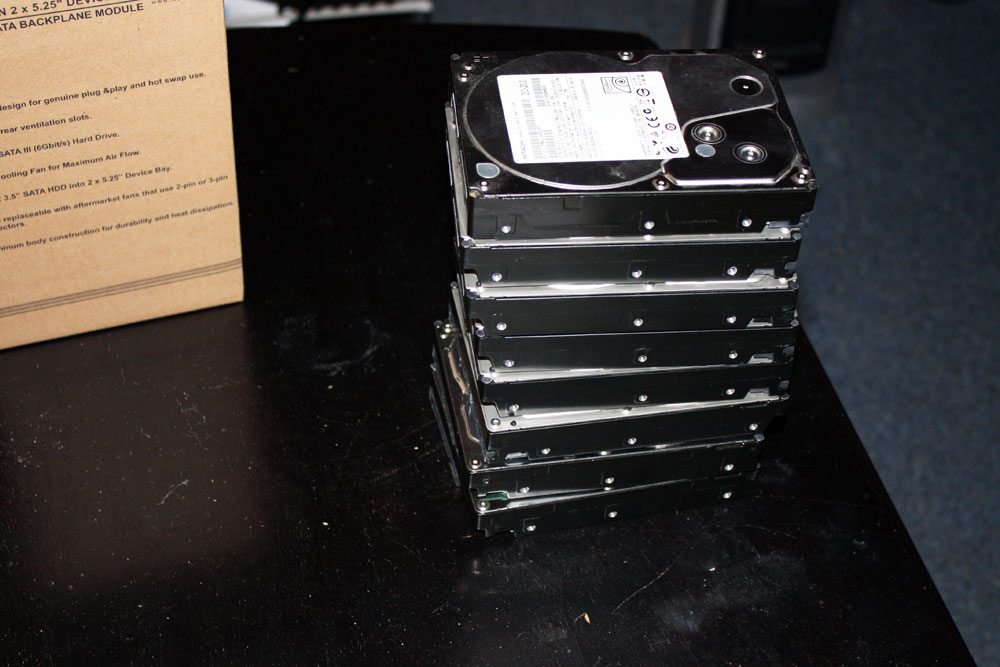

Although I have 8 2TB drives stacked up for the build, I am only going to be able to install six due to the size limitations of the Node 304. I will keep 2 of them handy in case I suffer from a drive failure.

Build-Better-NAS-(55)

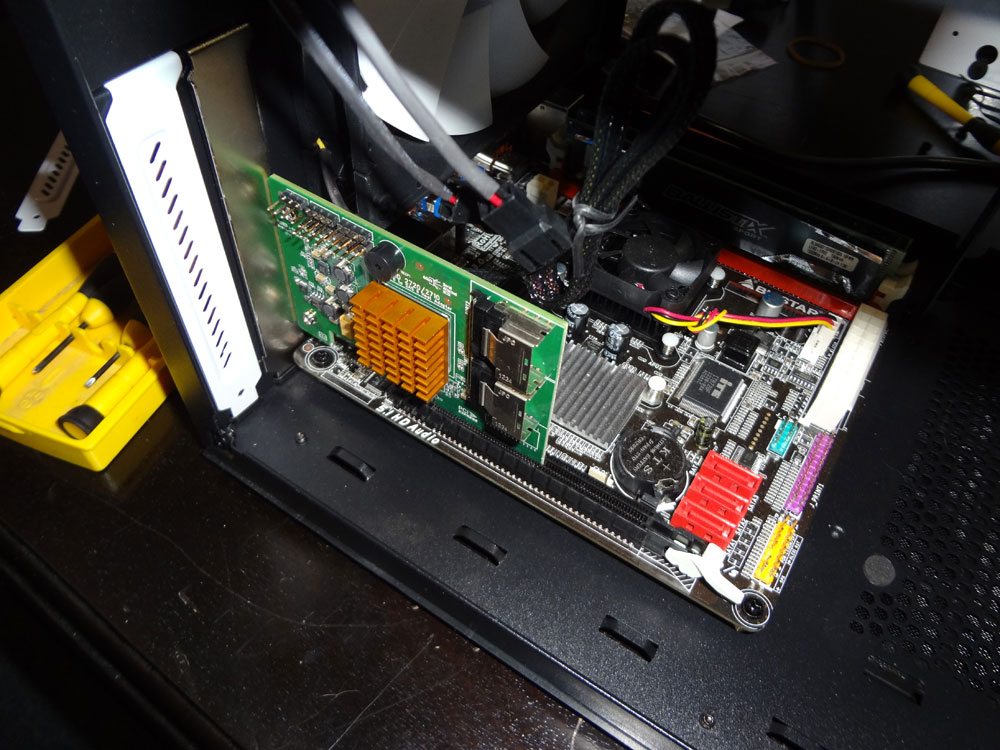

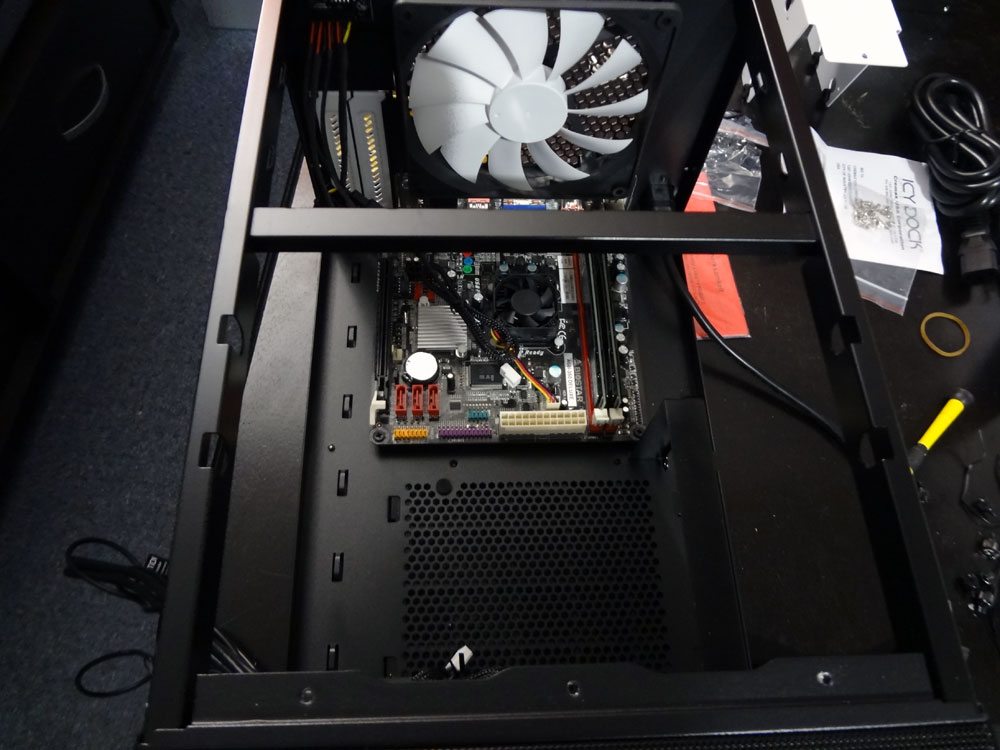

The motherboard installs easily with plenty of room.

Build-Better-NAS-(56) Build-Better-NAS-(57)

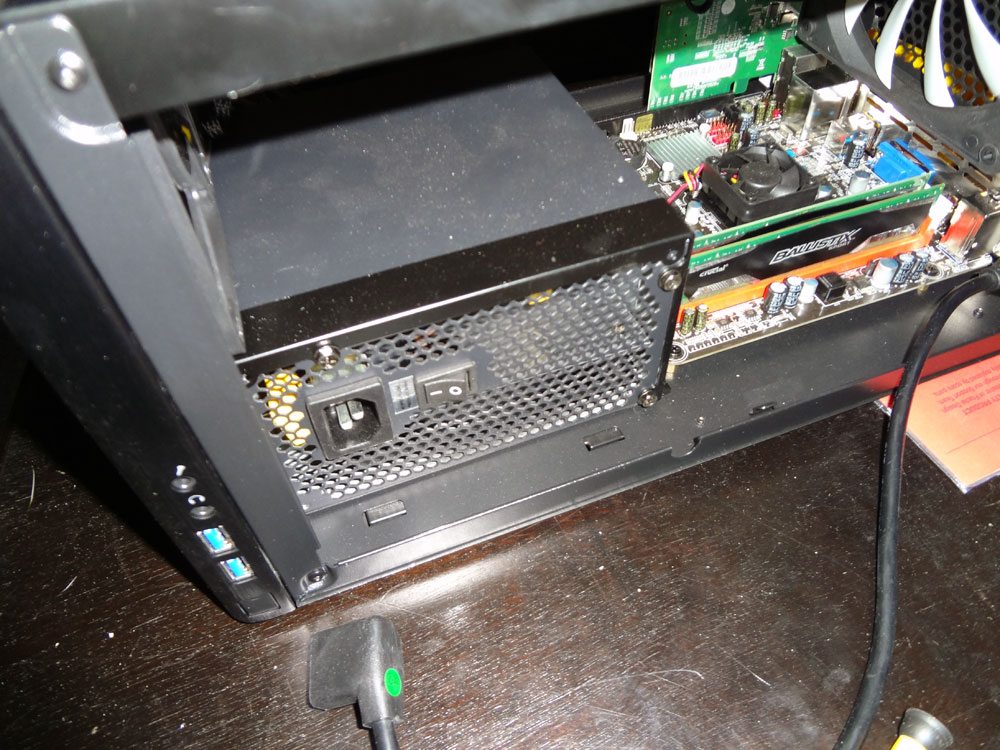

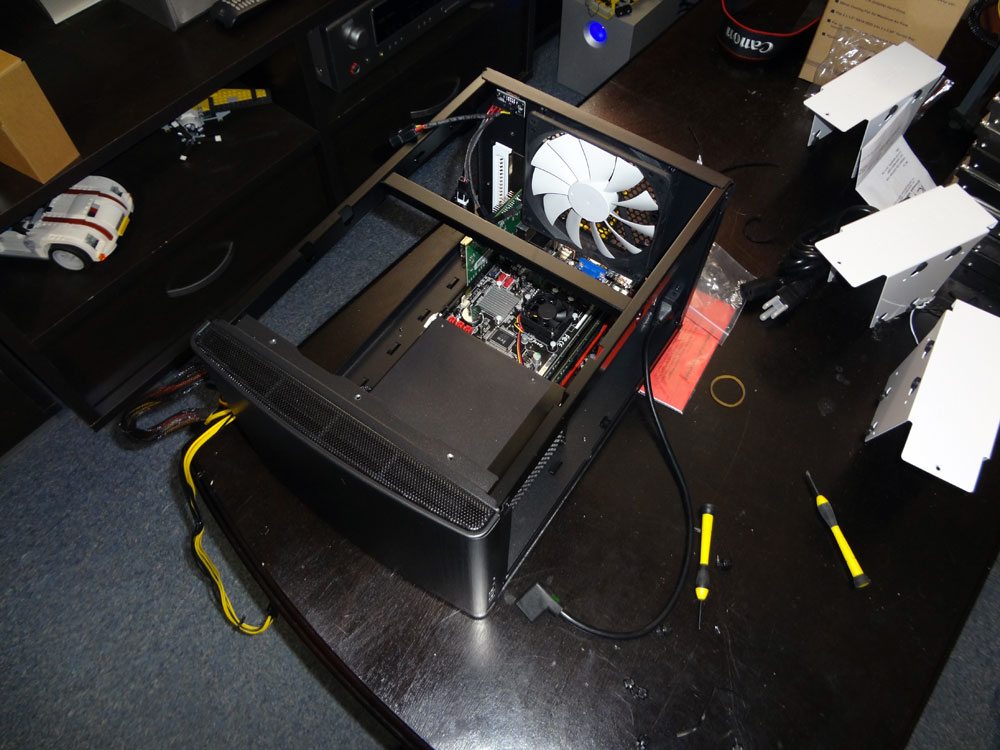

The PSU installs in the front of the case, this means the case is longer than it is wider.

Build-Better-NAS-(58) Build-Better-NAS-(59)

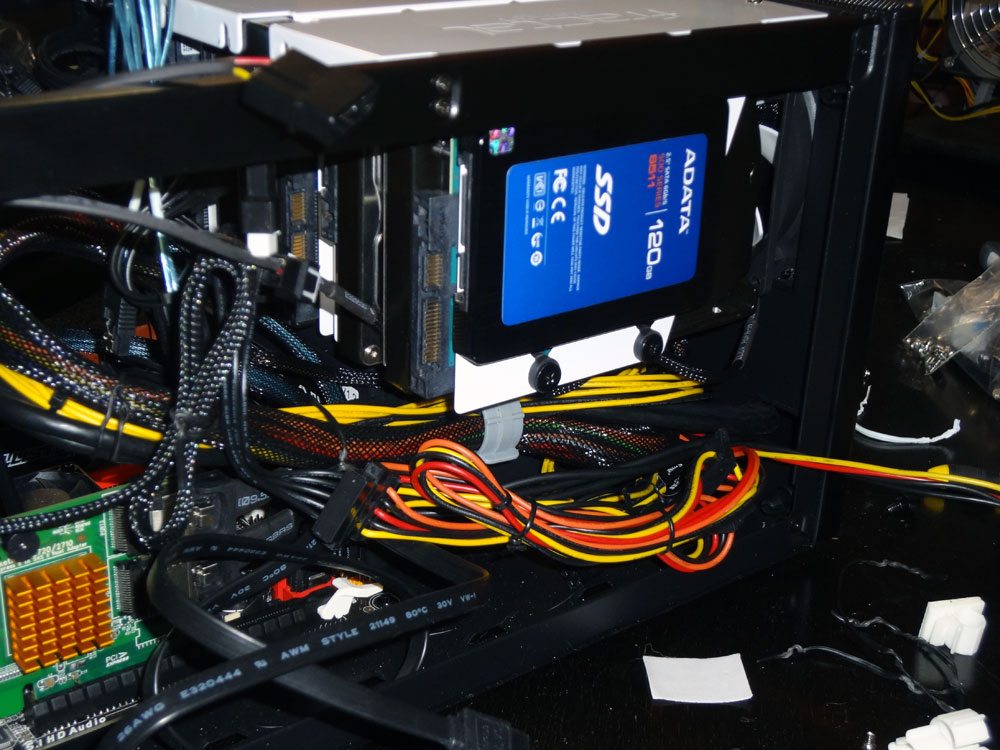

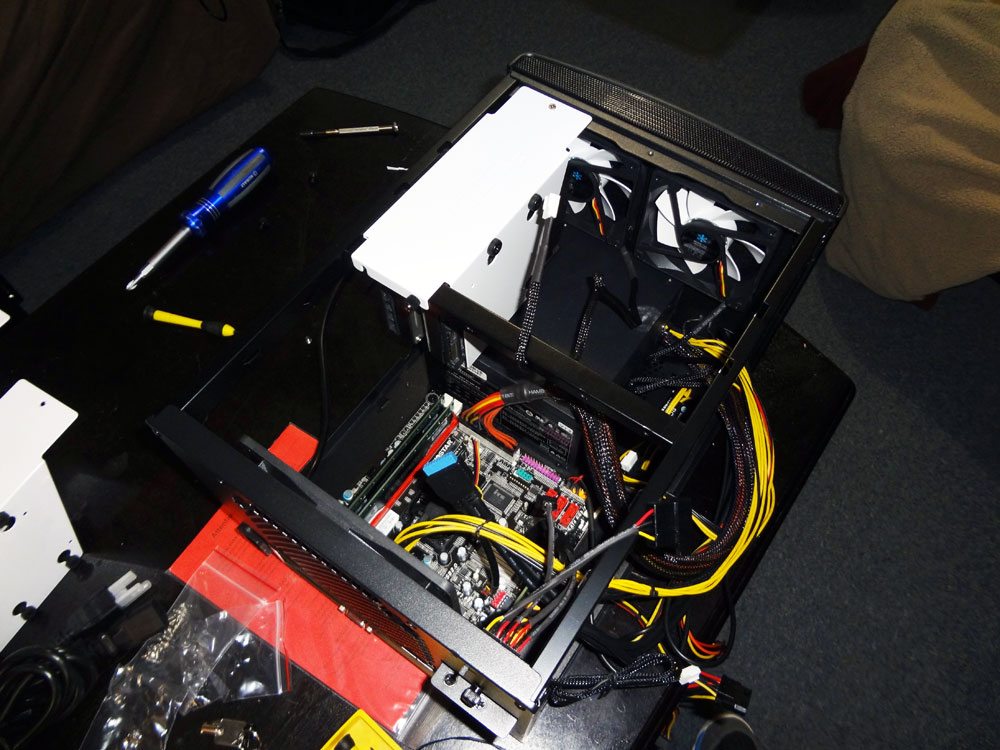

Hard drives are installed and the 2.5″ SSD is mounted to the outside of one of the cages. Unfortunately, I didn’t capture in pics that you have to install the cage with the SSD attached to the side first or you won’t be able to get it past the frame of the chassis.

Build-Better-NAS-(60) Build-Better-NAS-(61) Build-Better-NAS-(62)

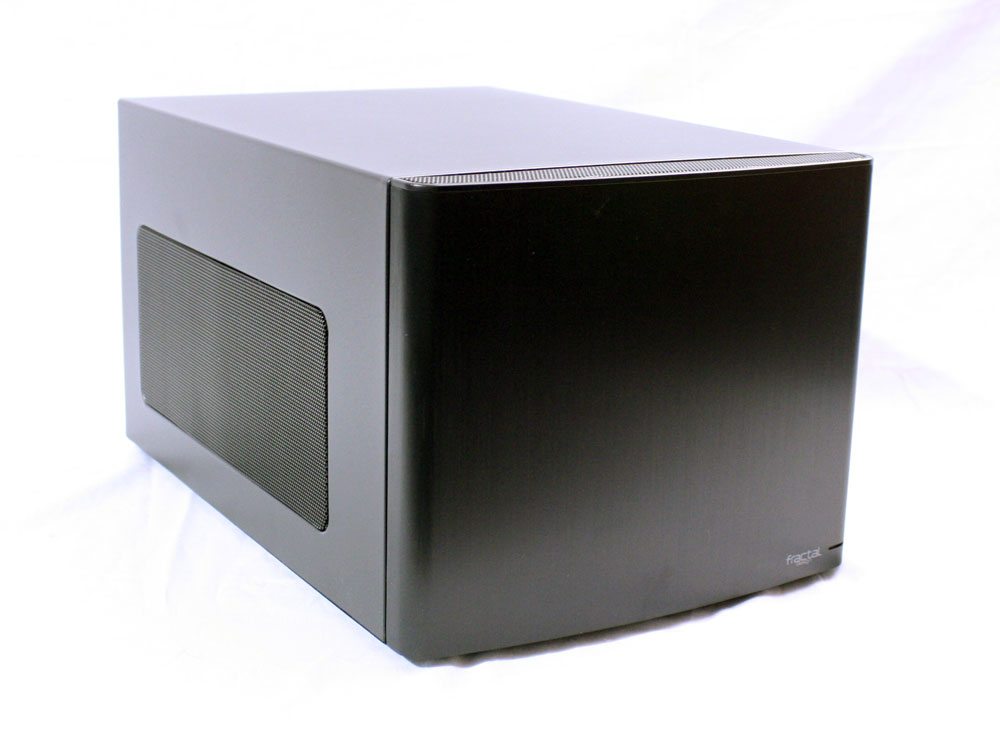

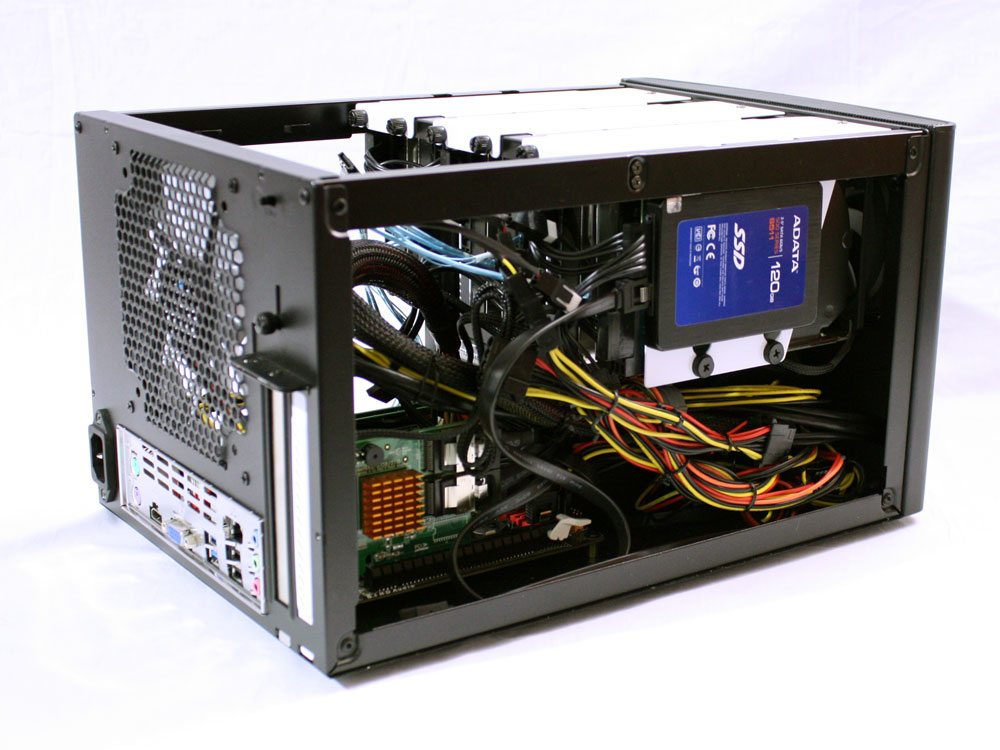

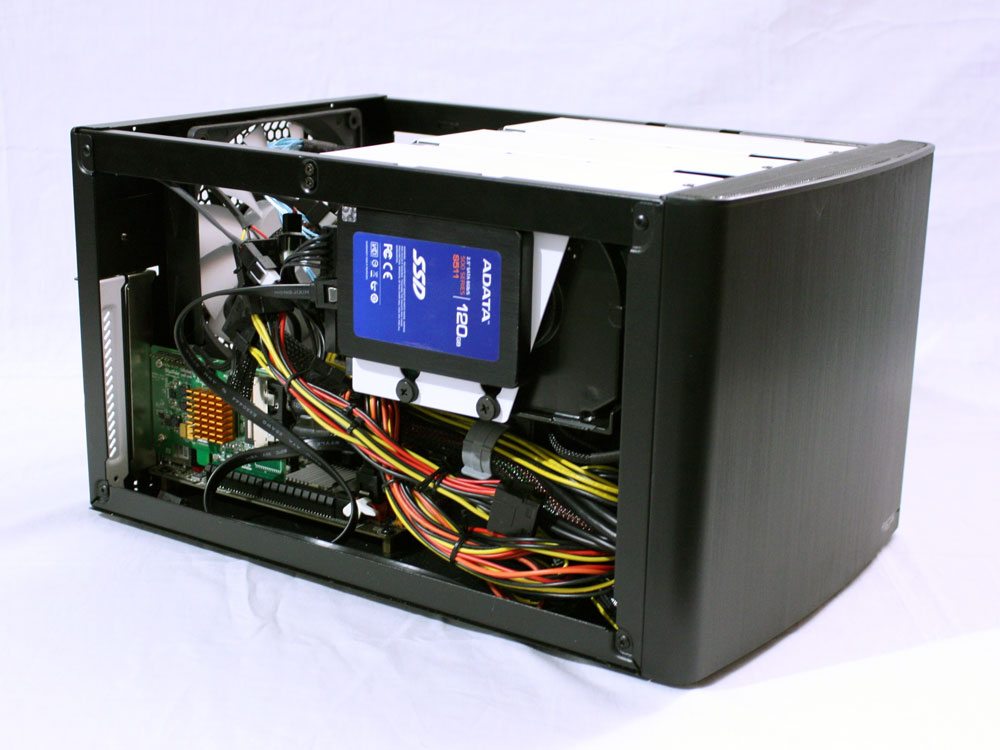

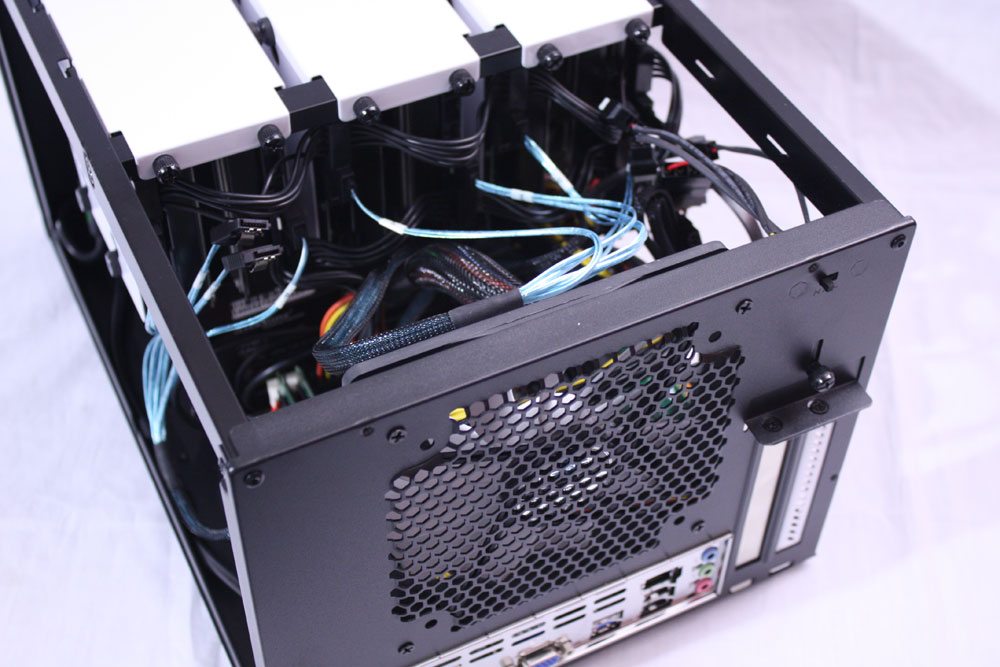

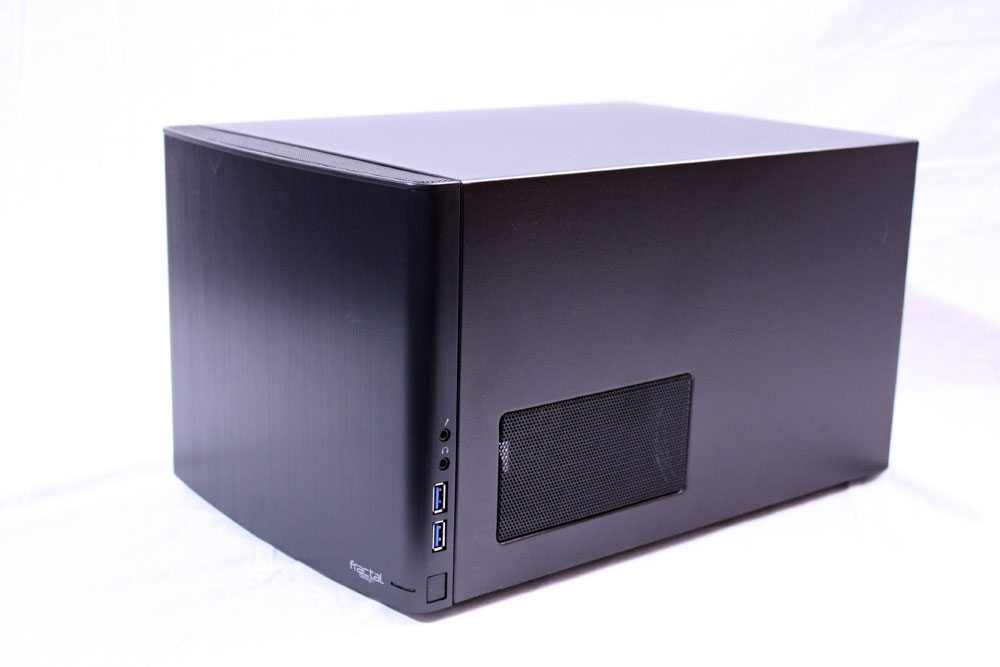

A few pics of the finished product.

Build-Better-NAS-(63) Build-Better-NAS-(64) Build-Better-NAS-(67) Build-Better-NAS-(65) Build-Better-NAS-(66)
